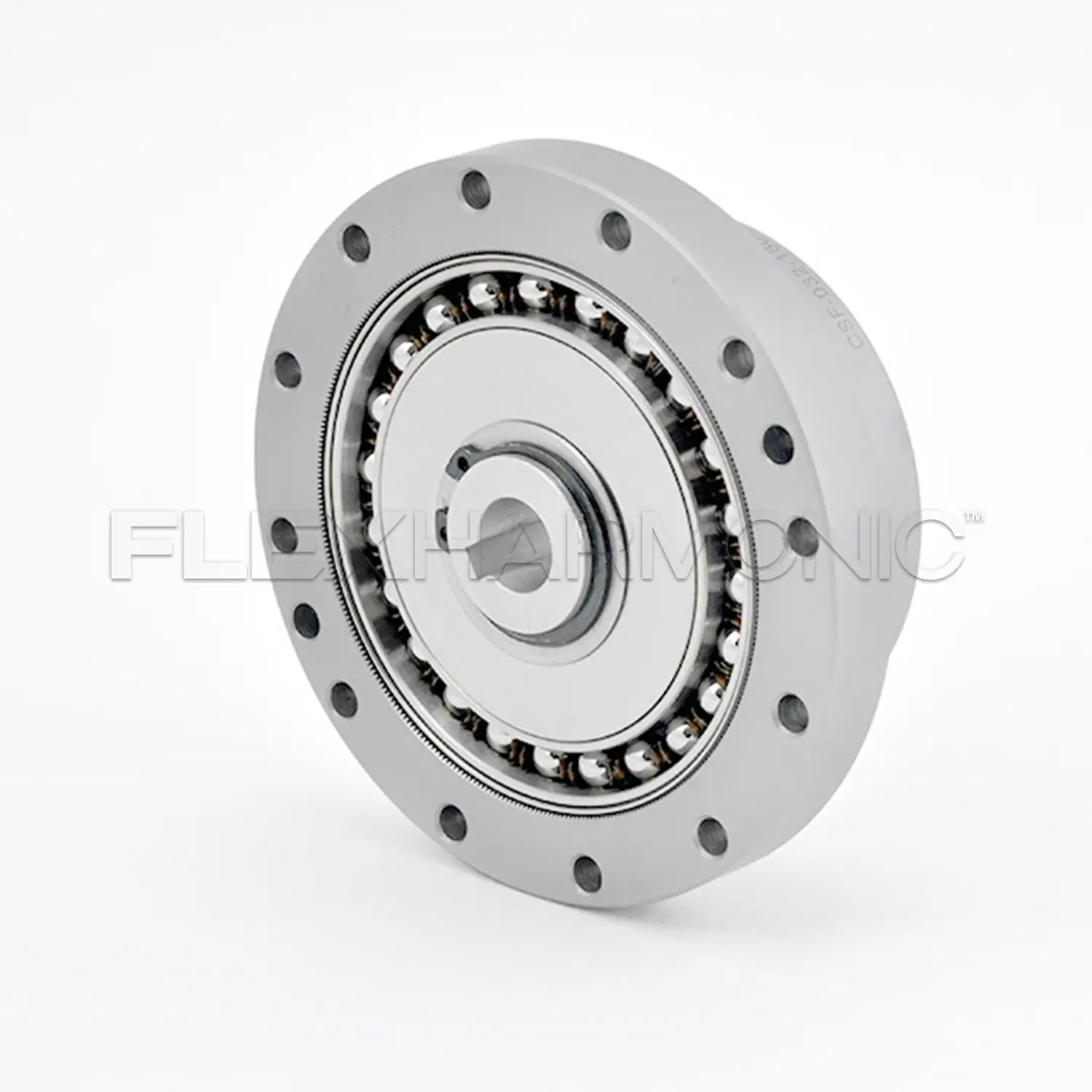

Short Cup Harmonic Component Set
Part Number: CSF-17-100-M1
Size:
17202532
Gear Ratio:
5080100120160
Features and Benefits
- Zero backlash
- Standard sizes 17, 20, 25, 32 (additional by request)
- High ratios from 50:1 to 160:1
- Continuous running torque to 137 Nm
- Repeated torque rating to 372 Nm (higher torque options available)
- High durability and long life
- Compact size and light weight
- High positional accuracy and repeatability to ± 0.25 arc-sec
Specification
| RATIO | |||||
|---|---|---|---|---|---|
| Characteristic | Unit | 50 | 80 | 100 | 120 |
| Rated Torque at 2000 RPM | Nm | 16 | 22 | 24 | 24 |
| Repeated Torque Limit | Nm | 34 | 34 | 54 | 54 |
| Momentary Peak Torque Limit | Nm | 70 | 70 | 86 | 78 |
| Max Input Speed (Oil) | RPM | 10000 | |||
| Max Input Speed (Grease) | RPM | 4000 | |||
| Moment of Inertia | Kgcm² | .076 | |||
| Weight | Kg | .7 | |||
