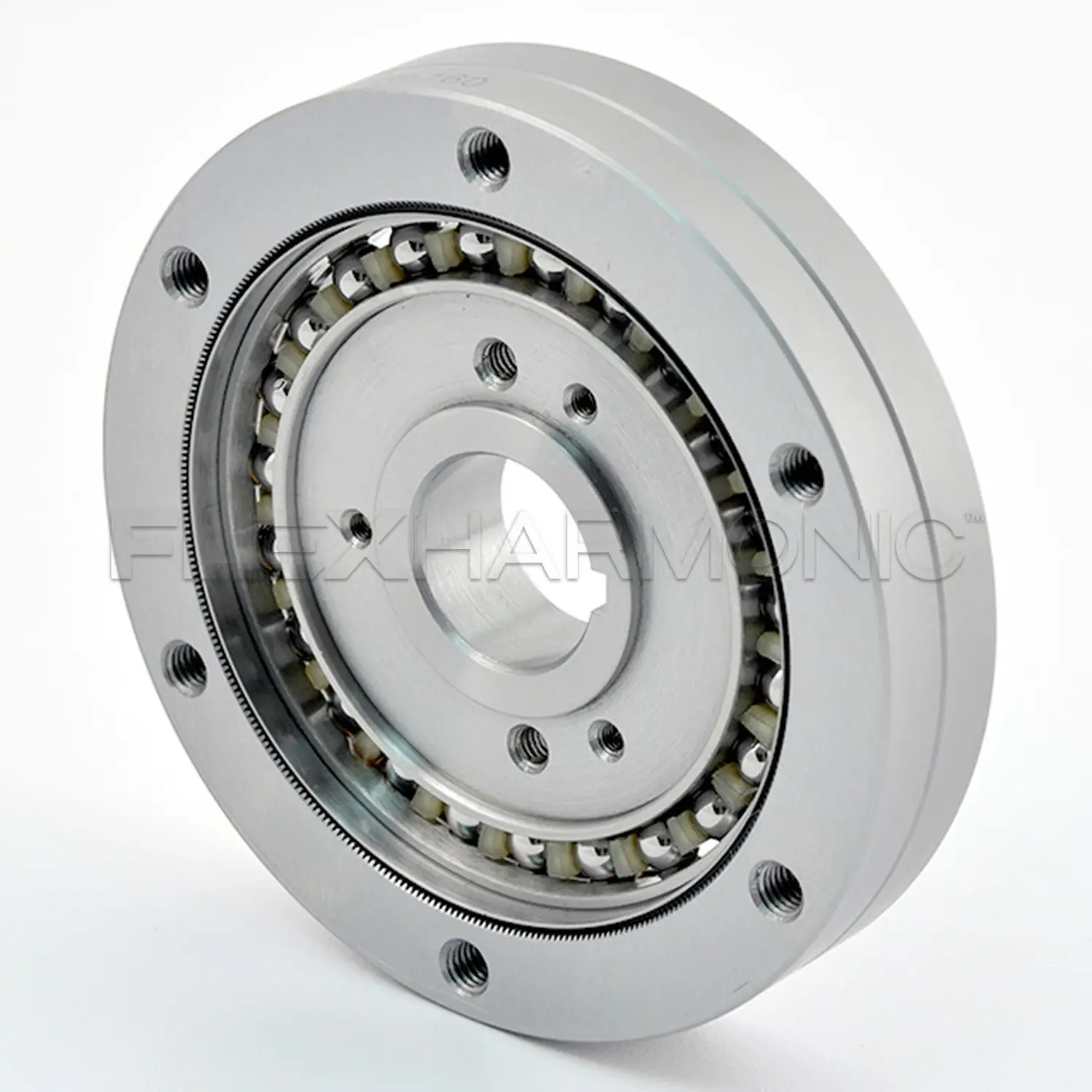

Ultra-Thin Pancake Type
Part Number: HDF-10-50-M1
Size:
10141720253240506580
Gear Ratio:
50606264668084100102120125135150160168200267
Features and Benefits
- Low backlash
- Compact design
- Shortest axial length
- High torque-to-weight ratio
- Single stage ratios to 267:1
- High positional accuracy
Specification
| RATIO | |||
|---|---|---|---|
| Characteristic | Unit | 50 | 64 |
| Rated Speed | rpm | 3000 | |
| Torque at Rated Speed | Nm | 1 | 1.2 |
| Repeated Torque Limit | Nm | 2 | |
| Momentary Torque | Nm | 3 | |
| Maximum Input Speed (Oil) | rpm | 8000 | |
| Maximum Input Speed (Grease) | rpm | 3500 | |
