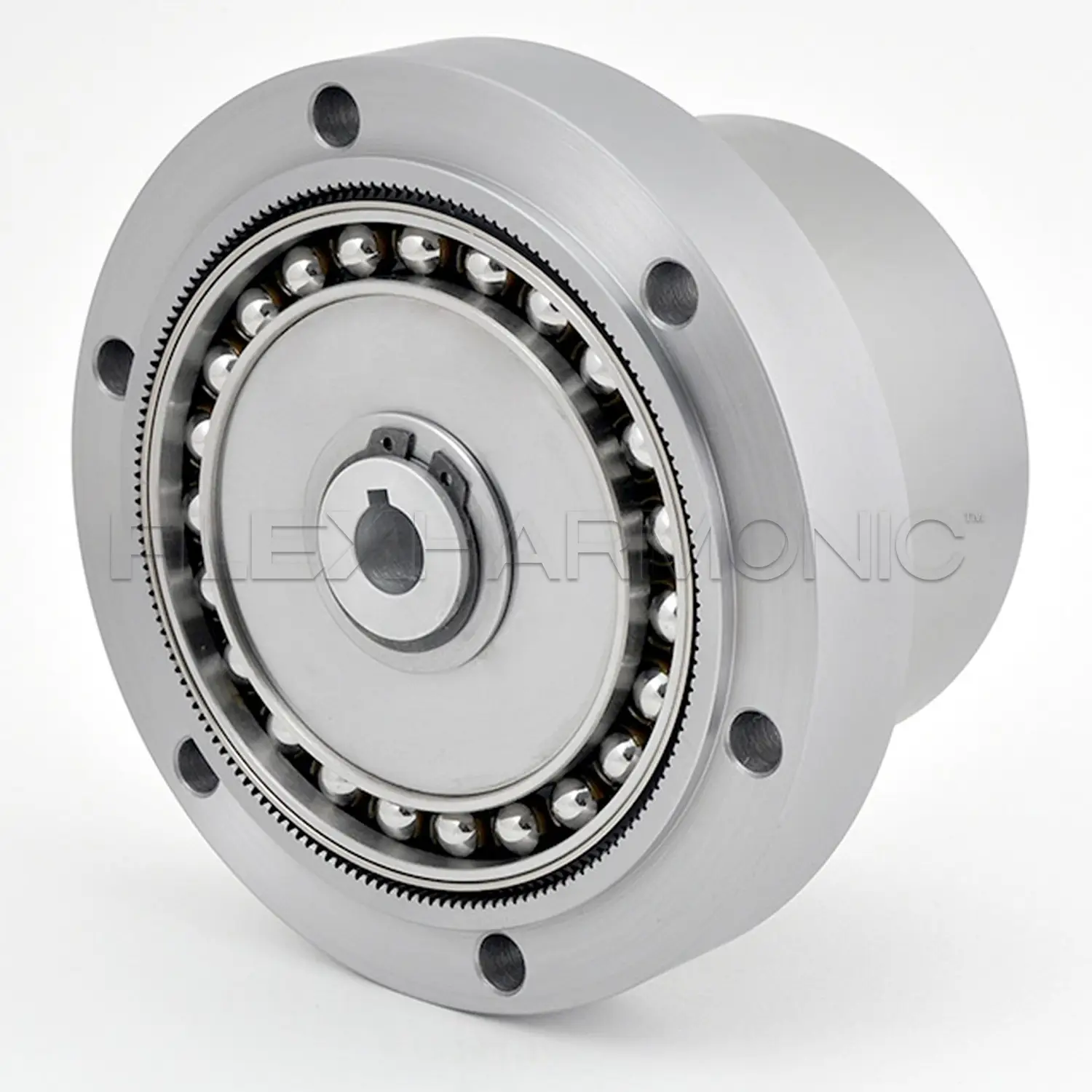

Zero Backlash Cup Type Component Set
Part Number: HDC-10-60-E1
Model:
E1E2M1
Size:
10141720253240506580100
Gear Ratio:
60648084100120125134135150160168200250267315
Features and Benefits
- Lifetime zero backlash
- Offered in metric and english sizes
- Drop in replacements available to meet existing applications requirements
- Single stage ratios from 60:1 to 315:1
- Continuous running torques to 4,000 Nm with peak torque capacities to 8,750 Nm
- High torque-to-weight ratios
- Excellent positional accuracy and repeatability
Specification
| Gear Ratio | |||
|---|---|---|---|
| Characteristic | Unit | 60 | 80 |
| Rated Speed | rpm | 3000 | |
| Torque at Rated Speed | Nm | 3.4 | 4.5 |
| Repeated Torque Limit | Nm | 6.8 | 9 |
| Momentary Torque Limit | Nm | 8.5 | 11.3 |
| Maximum Input Speed w/ Oil | rpm | 15000 | |
| Maximum Input Speed w/ Grease | rpm | 7500 | |
MetricImperial
